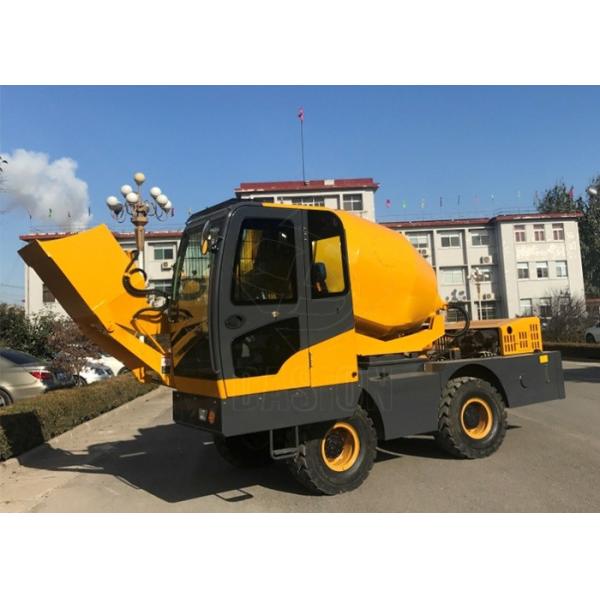

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
Advantages:
1. Engine-engine using well-known brands, strong power, promote faster, more economical and fuel-efficient, environmentally friendly and pollution-free.
2. The cab-good sound insulation, the overall stronger, safer, and fans can be modified according to customer needs in the cab air conditioning, give the operator a comfortable environment.
3. Transmission-torque, climbing fast, international quality, high quality and easy operation.
4. Braking system the braking system is very important, so for parts of the brake system is very strict, parts procurement and ensure quality.
5. Adopt the pressure water supply method, simplify the structure saving power, reduce the vehicle quality; The canister structure, double helix curved surface blade, USES different blades in different cone segments, improves the quality of concrete mixing, and reduces the residual amount.
Parameters:
| | Specification |
| Item | DS2.5 | DS1.5 | DS1.5F |
| Mixing System | Drum capacity | 4650L | 2900L | 2900L |
| Discharging capacity | 2500L | 1500L | 1500L |
| Discharge angle | 270° | 270° | -- |
| Water sysytem | Self-priming | Self-priming | Self-priming |
| Diesel engine | Total displacement | 4330cc | 3850cc | 3850cc |
| Max. power | 85Kw(116Hp) | 78Kw(106Hp) | 78Kw(106Hp) |
| STEERING | Articulated Steering | Articulated Steering | -- |
| Hydraulic system | Max. pressure | 16MPa | 16MPa | 16MPa |
| Speed | 2 forward gears
(Slow/High) | 0 - 7.0 Km/h | 0 - 7.0 Km/h | 0 - 7.0 Km/h |
| 7-20 Km/h | 7-20 Km/h | 7-20 Km/h |
| 2 reverse gears | 0 - 7.0 Km/h | 0 - 7.0 Km/h | 0 - 7.0 Km/h |
| 7 - 20 Km/h | 7 - 20 Km/h | 7 - 20 Km/h |
| Feature | Auto adding Lubricating Oil system | Self Propelled Concrete Mixing System | Self Propelled Concrete Mixing System |
| Hydraulic 280 integral torque converter | Hydraulic 265 torque converter | Hydraulic 265 torque converter |
| Equipped with driving image | | |
| Tire | 16-70-20 | 20.5-16 | 20.5-16 |
| Max gross weight | 13340kg | 8700kg | 8700kg |
| Dimensions | 7600 × 2990 × 2350 mm | 6030 × 2240 × 2750 mm | 6030 × 2240 × 2750 mm |
